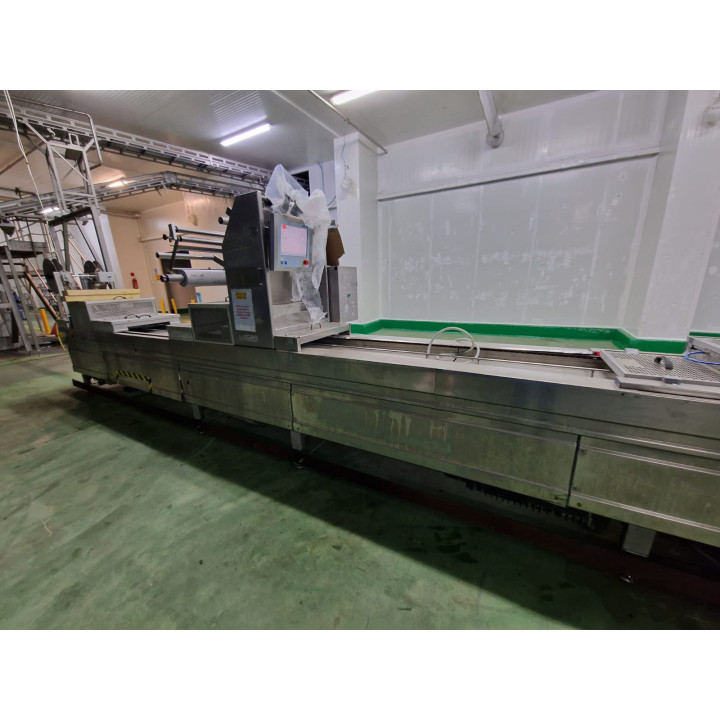

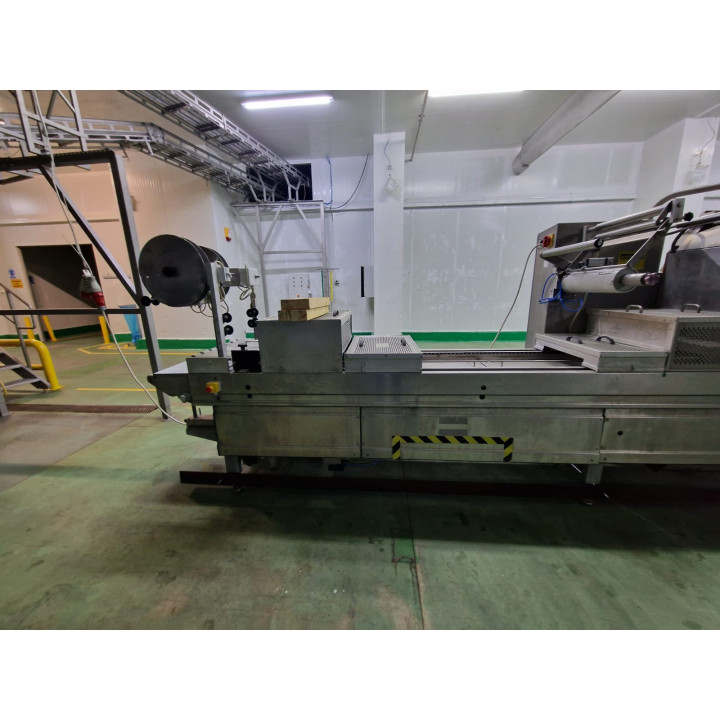

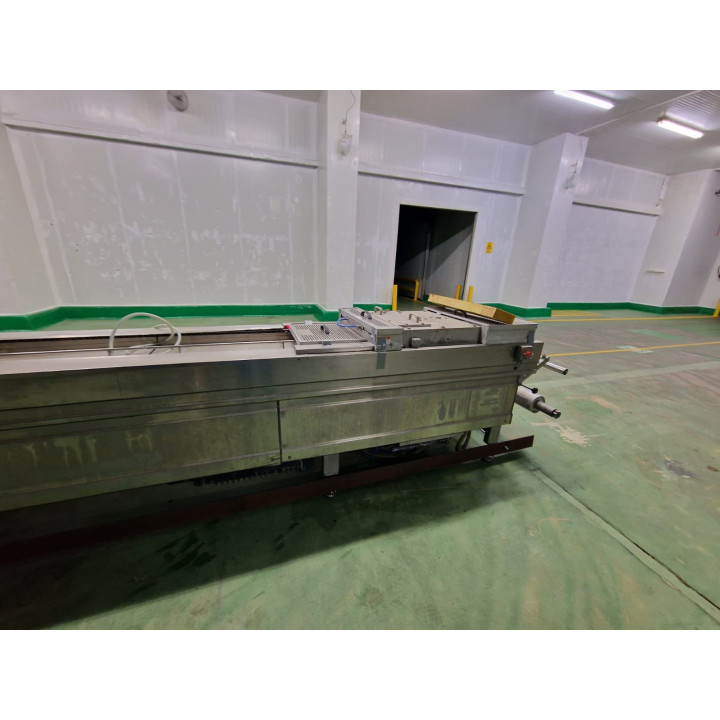

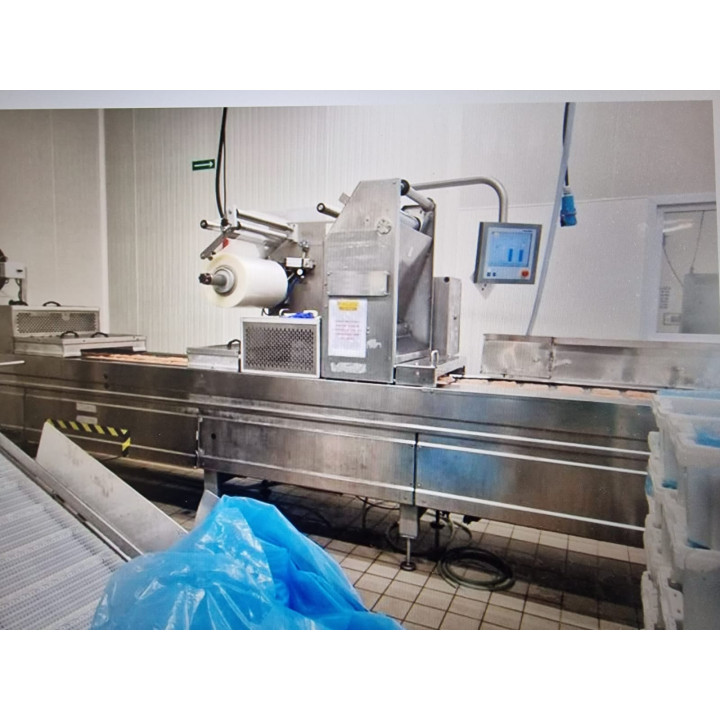

Termoforma Multivac R272 CD Darfresh (SKIN)

Thermoforming machine (also called a thermoformer) is designed for packaging food, medical products, and a wide range of other goods. The package is made from a bottom film that is heated and thermoformed by the machine to create the tray/cavity. The product is then sealed with a top lidding film from a second roll, ensuring a tight, secure seal that protects the contents inside.

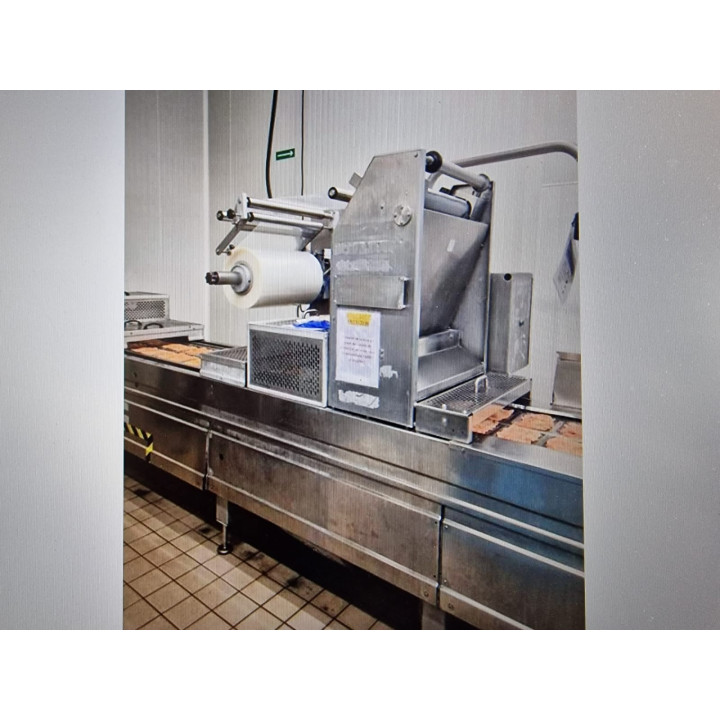

The Multivac R272 CD thermoformer enables the production of premium “skin” packs using the Darfresh system. Darfresh packaging uses specially engineered top and bottom films that create a vacuum “skin effect” pack, perfectly fitting the product like a second skin. The main advantage of this technology is a longer shelf life for food products. In addition, products packed this way have an exceptionally attractive appearance, significantly increasing their value for customers.

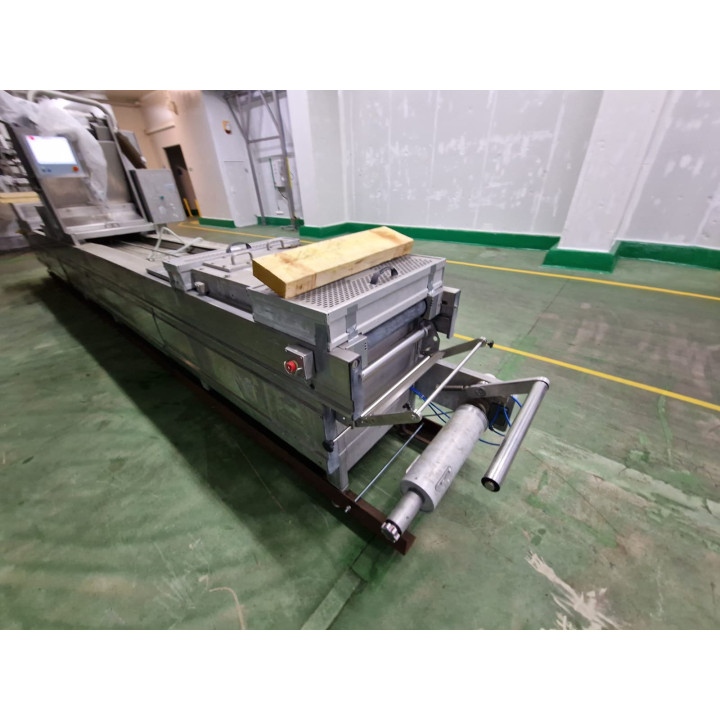

Side film trims are removed by two rollers, and remaining film waste is extracted via a film suction system.
Machine functions: Vacuum packaging, MAP, and SKIN packaging.
The unit is easy to operate and is suitable for medium and large meat plants, as well as vegetable and fruit processing facilities, and other production environments.

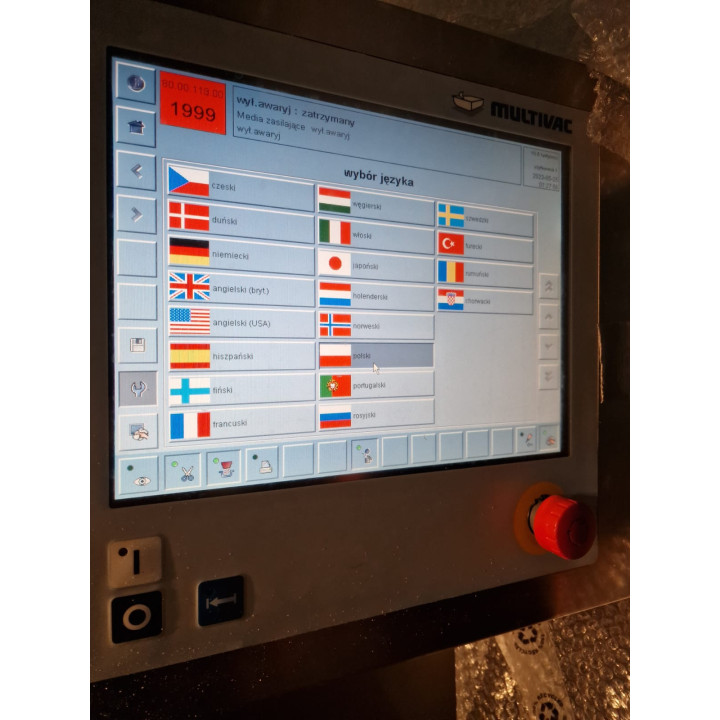

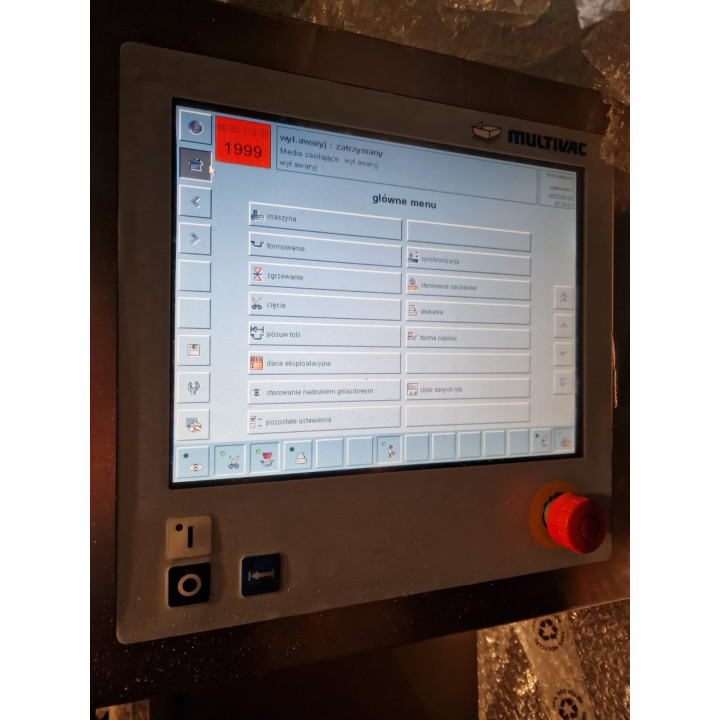

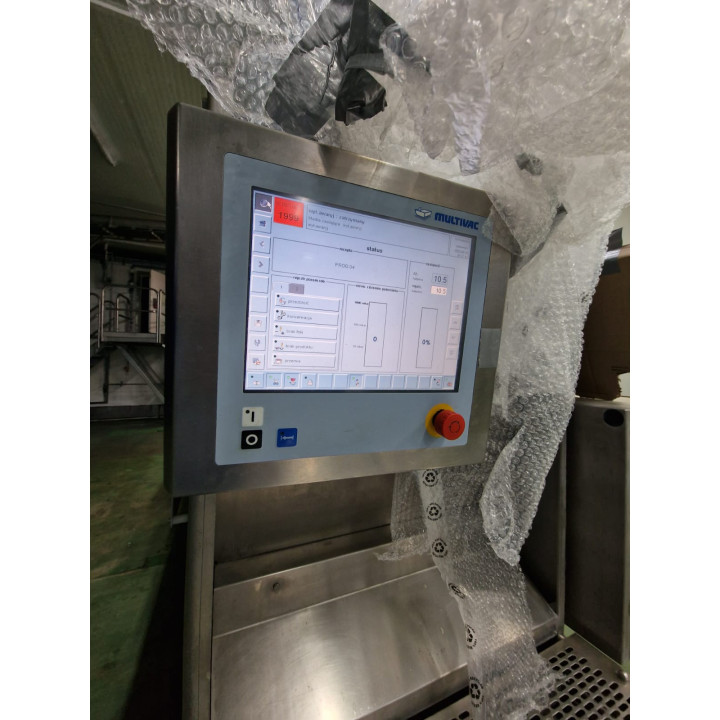

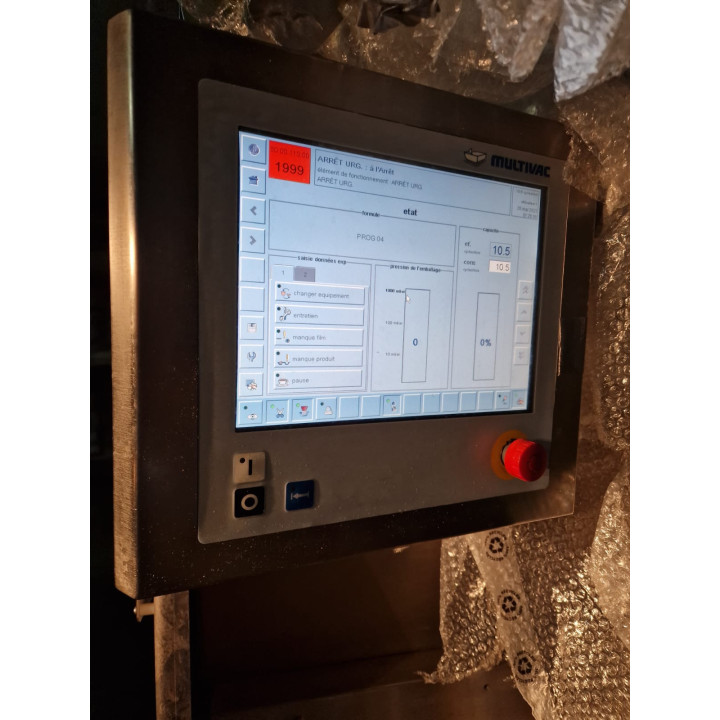

The thermoformer is equipped with a Multivac PLC control panel.

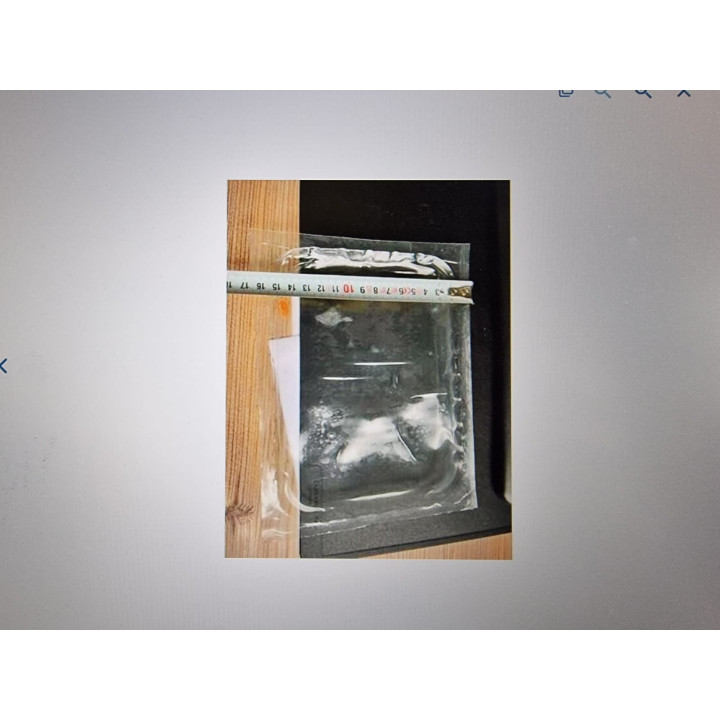

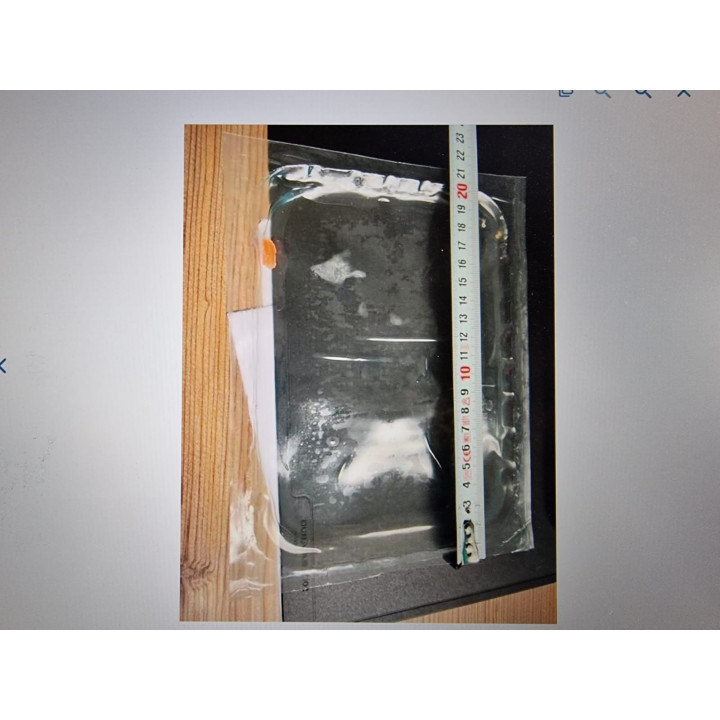

This machine includes one forming tool/mould: (165 mm × 210 mm ).

Technical specifications:

• Machine type: Thermoforming packaging machine

• Manufacturer: Multivac

• Model: R272 CD

• Output: up to 10 cycles/min (depending on pack size, film type, etc.)

• Film width: 470 mm

• Index (pitch): 250 mm

• Loading area: 1600 mm

• Vacuum system: Busch 250 m³/h vacuum pump + 500 m³/h booster pump

• Overall dimensions (L × W × H): 8200 × 1100 × 2200 mm

• Weight: 3000 kg

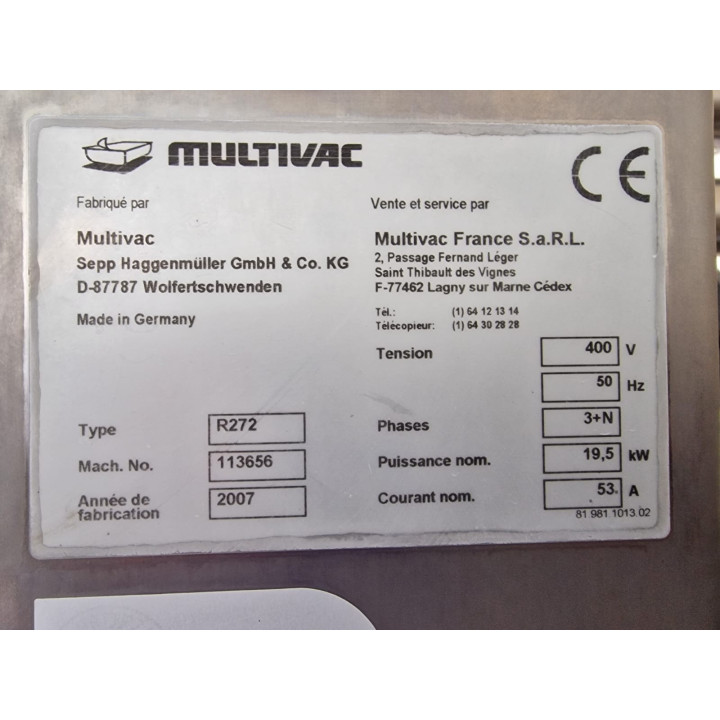

• Year of manufacture: 2007

• Power supply: 400 V (3 + N, 50 Hz)

• Total installed power: 20 kW

• Material: Stainless steel

• Compressed air connection: 6–8 bar

• Water connection: 1–7 bar
